Chat

This file is the brief: enough to build Chat from an empty folder. The files next to it are one build of it. If they don’t work on your Herdr, or you want it different, build it again from here.

What you see

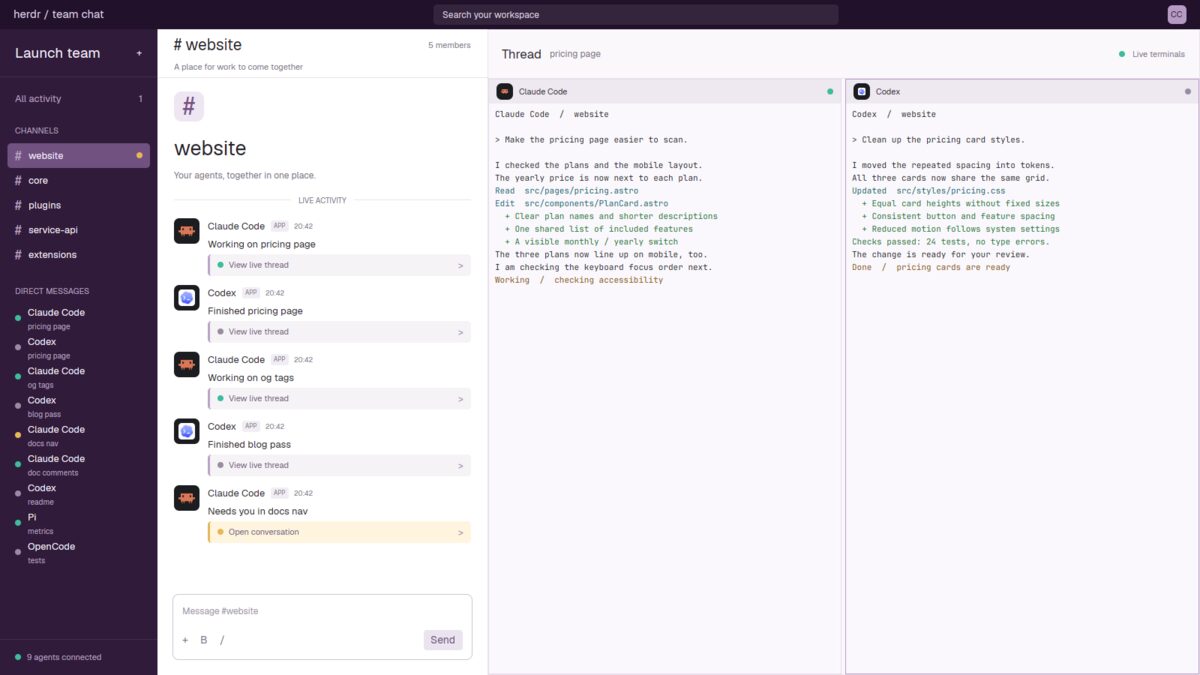

A 39px top bar over three columns, filling the window (no title bar):

1. The top bar, deep purple (#22112b): “herdr / team chat” on the left, a 540px search-shaped box in the middle and a small “CC” avatar.
2. The sidebar, 210px, purple (#311b3b). “Launch team” and a plus sign above All activity with a blocked-agent count. CHANNELS lists each space with a #; the active one has a lighter purple background (#715180). DIRECT MESSAGES lists all agents with a status dot, program name and tab name. The bottom says how many agents are connected.
3. The feed, 440px, white. A 65px heading names the active channel and member count. Below: a large #, channel name, welcome line and LIVE ACTIVITY divider. Each agent has a colored program avatar, program name, APP badge, clock time, status sentence and a thread link. The feed scrolls. A message-shaped box with formatting marks and Send sits at the bottom.
4. The thread, the remaining width. A 65px heading says “Thread”, the active tab’s name and “Live terminals”. Below are that tab’s terminals, pale purple (#faf8fc), separated by 5px gaps. Their 32px headers show a program icon, program name and status dot on #eee8f1.

Colors: ink #27232b, muted #817888, lines #e8e3ea, sidebar muted #b9a6c4. Text in Geist; terminal text is 11px.

How it behaves

• Clicking a channel selects its space. The feed shows only that space’s agents; direct messages continue to show everyone.
• Clicking a direct message or feed thread link selects that agent’s space and tab, opening its live terminals on the right.
• Blocked agents get a pale yellow link labeled “Open conversation”. Other links say “View live thread”. A blocked channel also gets a yellow dot.
• Each feed row is the agent’s current status, not a conversation history. Its clock time changes when a new agent update is first seen.
• The app’s next/previous agent keys follow the full agents list.

Built from

• The layout (layouts/chat.json): a root column, titlebar: "none", theme: "paper" and purple color overrides. A top block sits above a non-resizable row of sidebar, feed and thread column. The latter holds a title block and content: { tab: "active", pane: { … } }. Pane corners are square, borders 1px (#e6ddeb, focused #b99ac7); terminal padding is [8, 6].
• One mod (mods/chat/), selected by props().role: top, sidebar, feed, thread or pane. The feed is also the fallback role.
• Data and commands: spaces(), agents(), panes() and props().pane; run("space.select", { id }) for channels, run("agent.focus", { terminal }) for agents, and setAgentOrder() on sidebar renders.
• Time and art: an in-memory map records local HH:MM when an agent’s seq changes. No timer or terminal transcript read. Program avatars use program.tile, icon, tint and color. mod.json uses place: "none". No shipped mod, external CLI or chat server is needed.

Watch out

• Search, All activity, the sidebar plus, message box, formatting controls and Send do nothing. This layout does not send messages.
• “Launch team” and “CC” are fixed labels, not account data.
• Sidebar rows do not scroll; enough spaces or agents get clipped.
• Feed times are locally observed update times, not stored message times.
• The mod hardcodes its colors. If chat is taken, rename the layout and mod references before installing.

Done when

• Channels list the spaces, and selecting one changes the feed’s members.
• Status changes update sentences and dots without adding message history.
• Direct messages and thread links open the right tab’s terminals.
• herdr-app check mods/chat passes, and switching away and back works.
